Tuto 3: electronic structure Hamiltonian and spin operators
Dr. Saad Yalouz - Laboratoire de Chimie Quantique de Strasbourg, France - July 2022
In this QuantNBody tutorial, we will focus on the construction of spin operators like \({S}^2\) and \(S_z\) and ab initio electronic structure Hamiltonians \(H\). We will show how easily we can build these operators and use them.
Let us first import our package and some additional libraries
import quantnbody as qnb
import numpy as np
import scipy
import psi4
import math
Electronic structure Hamiltonian
The ab initio electronic structure Hamiltonian describes how a collection of \(N_e\) electrons rearrange around a set of positively charged nuclei in a molecule. This operator is defined like:
where we have the one- and two-electron integrals \(h_{pq}\) and \(g_{pqrs}\) (and the nuclear repulsion energy \(\mathcal{E}_{nuc.\ rep.}\)) associated to the one- and two-electron spin-free excitation operators defined like
and
Here again, we see that all these operators can be defined in terms of the \(a_{p,\sigma}^\dagger a_{q,\tau}\) operators.
Below, we show how to create such a Hamiltonian for the H\(_4\) molecule in the STO-3G basis, and how to (easily) compute a ground state potential energy surface. In this case, we need to get access to the electronic integrals of the system. We use for this Psi4 (but note that Pyscf could have been used too !)
First we build the essential many-body basis and a_Dagger_a operators
N_elec = N_MO = 4 # Number of MOs and electrons in the system
nbody_basis = qnb.fermionic.tools.build_nbody_basis( N_MO, N_elec )
a_dagger_a = qnb.fermionic.tools.build_operator_a_dagger_a( nbody_basis )
Then we can build the PES of the molecule with a loop
def RUN_FCI_PSI4( string_geo, basisset, num_roots ):
'''
A function to run a FCI method with the Psi4 package
'''
psi4.geometry( string_geo )
psi4.set_options({ 'basis' : basisset,
'num_roots' : num_roots,
'S' : 0.0,
'DIAG_METHOD' : 'SEM' })
fci, fcici_wfn = psi4.energy('fci',return_wfn=True)
E_FCI = []
for root in range(num_roots):
E_FCI += [ psi4.variable('CI ROOT {} TOTAL ENERGY'.format(root)) ]
return E_FCI
E_HF = []
E_FCI = []
E_FCI_QNB = []
N_elec = N_MO = 4
basisset = 'sto-3g'
MAX_ROOT = 15
list_theta = np.linspace(num = 30, start=20. * np.pi/180., stop=160. * np.pi/180., endpoint=True)
dim_H = math.comb( 2*N_MO, N_elec )
nbody_basis = qnb.fermionic.tools.build_nbody_basis( N_MO, N_elec )
dim_parameter = len(list_theta)
Energies_FCI = np.zeros((dim_parameter,MAX_ROOT))
Energies_FCI_QNB = np.zeros((dim_parameter,dim_H))
a_dagger_a = qnb.fermionic.tools.build_operator_a_dagger_a(nbody_basis)
S_2, S_plus, S_z = qnb.fermionic.tools.build_s2_sz_splus_operator(a_dagger_a)
# for r in tqdm(list_r):
elem = 0
for theta in (list_theta):
r = 1.
XYZ_geometry = """ H {0} {1} 0.
H {0} -{1} 0.
H -{0} {1} 0.
H -{0} -{1} 0. """.format( r*np.cos(theta/2.), r*np.sin(theta/2.) )
overlap_AO, h_AO, g_AO, C_RHF, E_HF, E_rep_nuc = qnb.fermionic.tools.get_info_from_psi4( XYZ_geometry,
basisset )
h_MO, g_MO = qnb.fermionic.tools.transform_1_2_body_tensors_in_new_basis( h_AO, g_AO, C_RHF )
H = qnb.fermionic.tools.build_hamiltonian_quantum_chemistry( h_MO,
g_MO,
nbody_basis,
a_dagger_a )
eig_energies, eig_vectors = np.linalg.eigh( H.A )
E_FCI_QNB += [ E_rep_nuc + eig_energies[0] ]
Energies_FCI_QNB[elem,:] = [ E_rep_nuc + eig_energies[p] for p in range(dim_H) ]
Energies_FCI[elem,:] = RUN_FCI_PSI4( XYZ_geometry + '\n' + 'symmetry c1', basisset, MAX_ROOT )
elem += 1
Plotting the resulting H\(_4\) PES
import matplotlib.pyplot as plt
plt.rc('font', family='serif')
plt.rc('font', serif='Times New Roman')
plt.rc('font', size='14')
plt.rc('xtick', labelsize='x-large')
plt.rc('ytick', labelsize='x-large')
plt.rc('lines', linewidth='2')
# Plotting the resulting energies
fig, ( ax1 ) = plt.subplots( nrows=1, ncols=1, figsize=(8, 6) )
for i in range(3):
if i ==0:
ax1.plot( list_theta, Energies_FCI[:,i], color='red' , label='Psi4 (Singlet states only)' )
else:
ax1.plot( list_theta, Energies_FCI[:,i], color='red' )
for i in range(9):
if i ==0:
ax1.plot( list_theta, Energies_FCI_QNB[:,i], color='blue', ls='--', lw=3 , label='QuantNBody package' )
else:
ax1.plot( list_theta, Energies_FCI_QNB[:,i], color='blue', ls='--', lw=3 )
ax1.grid()
ax1.set_ylabel('Energy (Ha)', size=24)
ax1.set_xlabel('Angle (rad.)', size=24)
ax1.legend(fontsize='large', ncol=1)
plt.tight_layout()
plt.show()

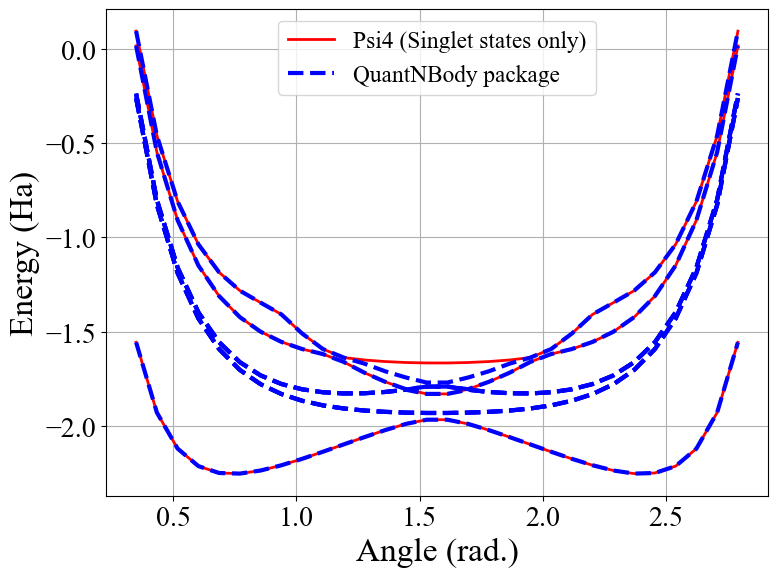

We see here that QuantNBody produces more states than Psi4 which is restricted to singlets. This is linked to the spin symmetries which has not been defined. As a results, we find here all the states including singlet, triplet, quintet etc.
In the following we show how to build spin operators and restrict our calculations to particular spin symmetries.
Building spin operators to check the spin symmetry of the states
With QuantNBdoy, one can easily build spin operators as the latter are also naturally defined with \(a^\dagger a\) elementary bricks. For example, we can build the global \({S}^2\) operator
with the \(S_z\) contribution
and the spin-up creation operator
as we know that \({S}_- = {S}_+{^\dagger}\).
Below we show how to generate the matrix representation of these three operators with a single pre-made function.
S_2, S_z, S_plus = qnb.fermionic.tools.build_s2_sz_splus_operator(a_dagger_a) # <=== FCT IN THE PACKAGE
Now, we can use the \({S}^2\) operator to check the spin symmetry of the state produced by the QuantNBody. For this, nothing more simple : we compute the averaged value of this operator for the 10 first eigenstates of the ab initio Hamiltonian
We show how to do that below.
print( 'Checking the value of S_2 for the 10 first eigenstates produced by QuantNBody ' )
for i in range(10):
print('Eigenstate #{} '.format(i) , eig_vectors[:,i].T @ S_2 @ eig_vectors[:,i])
Checking the value of S_2 for the 10 first eigenstates produced by QuantNBody
Eigenstate #0 -9.28450747276484e-21
Eigenstate #1 1.999999999999999
Eigenstate #2 2.000000000000001
Eigenstate #3 1.9999999999999984
Eigenstate #4 1.9999999999999938
Eigenstate #5 2.0000000000000018
Eigenstate #6 2.000000000000003
Eigenstate #7 8.535459286169437e-29
Eigenstate #8 1.8794697497391845e-28
Eigenstate #9 2.0000000000000004
Indeed ! We see here that the states generated are not all singlets, e.g. from #1 to #6 we have triplets (:-/) …
To correct this, in QuantNBody we implemented a spin-penalty technique. The idea is here to augment the Hamiltonian of a system like
Redefining the Hamiltonian like this will change the spectrum of the operator such that every eigenstates \(| \Psi \rangle\) which don’t have a specific spin symmetry such that
will take an “effective” positive energy penalty which will thus shift the state upper in the spectrum. The penalty term is chosen to be deliberatly large to ensure that these states are well discared. The value of the spin symmetry targeted \(s^2_{target}\) has to be defined by the user.
This extension has been implemented for every fermionic Hamitlonian (model or ab initio ones). We show below the additional arguments we have to provide to the Hamiltonian function to generate this penalty term and thus obtain singlet in H\(_4\).
list_theta = np.linspace(num = 30, start=20. * np.pi/180., stop=160. * np.pi/180., endpoint=True)
E_HF = []
E_FCI_me = []
N_elec = N_MO = 4
dim_H = math.comb( 2*N_MO, N_elec )
nbody_basis = qnb.fermionic.tools.build_nbody_basis( N_MO, N_elec )
MAX_ROOT = 6
dim_parameter = len(list_theta)
Energies_FCI_QNB = np.zeros((dim_parameter,dim_H))
a_dagger_a = qnb.fermionic.tools.build_operator_a_dagger_a(nbody_basis)
S_2, S_plus, S_z = qnb.fermionic.tools.build_s2_sz_splus_operator(a_dagger_a)
# for r in tqdm(list_r):
elem = 0
for theta in (list_theta):
r = 1.
XYZ_geometry = """ H {0} {1} 0.
H {0} -{1} 0.
H -{0} {1} 0.
H -{0} -{1} 0. """.format( r*np.cos(theta/2.), r*np.sin(theta/2.) )
overlap_AO, h_AO, g_AO, C_RHF, E_HF, E_rep_nuc = qnb.fermionic.tools.get_info_from_psi4( XYZ_geometry,
basisset )
h_MO, g_MO = qnb.fermionic.tools.transform_1_2_body_tensors_in_new_basis( h_AO, g_AO, C_RHF )
H = qnb.fermionic.tools.build_hamiltonian_quantum_chemistry( h_MO,
g_MO,
nbody_basis,
a_dagger_a,
S_2 = S_2, # <=== Here : S_2 operator
S_2_target=0) # <=== Here : spin symmetry targeted
eig_energies, eig_vectors = np.linalg.eigh( H.A )
E_FCI_me += [ E_rep_nuc + eig_energies[0] ]
Energies_FCI_QNB[elem,:] = [ E_rep_nuc + eig_energies[p] for p in range(dim_H) ]
elem += 1
import matplotlib.pyplot as plt
plt.rc('font', family='serif')
plt.rc('font', serif='Times New Roman')
plt.rc('font', size='14')
plt.rc('xtick', labelsize='x-large')
plt.rc('ytick', labelsize='x-large')
plt.rc('lines', linewidth='2')
# Plotting the resulting energies
fig, ( ax1 ) = plt.subplots( nrows=1, ncols=1, figsize=(8, 6) )
for i in range(3):
if i ==0:
ax1.plot( list_theta, Energies_FCI[:,i], color='red' , label='Psi4 (Singlet states only)' )
else:
ax1.plot( list_theta, Energies_FCI[:,i], color='red' )
for i in range(3):
if i ==0:
ax1.plot( list_theta, Energies_FCI_QNB[:,i], color='blue', ls='--' , lw=3, label='QuantNBody with singlet spin penalty' )
else:
ax1.plot( list_theta, Energies_FCI_QNB[:,i], color='blue', ls='--' , lw=3 )
ax1.grid()
ax1.set_ylabel('Energy (Ha)', size=24)
ax1.set_xlabel('Angle (rad.)', size=24)
ax1.legend(fontsize='large', ncol=1)
plt.tight_layout()
plt.show()

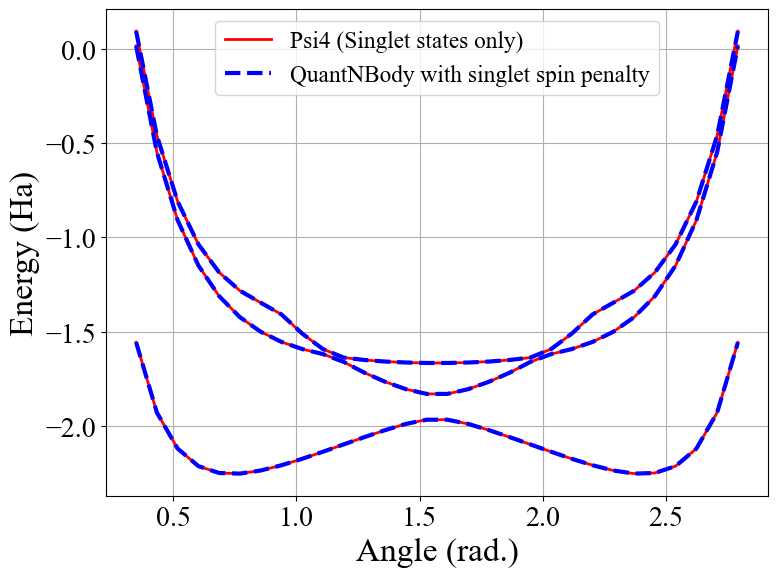

Congrats ! Here we have totally solved the problem: the lowest eigenstates given by our code are indeed singlet ! To check this we can compute again the averaged \(\langle S^2 \rangle\) over the few first eigenstates as shown below.
print( 'Checking the value of S_2 for the 10 first eigenstates produced by QuantNBody ' )
for i in range(10):
print('Eigenstate #{} '.format(i) , eig_vectors[:,i].T @ S_2 @ eig_vectors[:,i])
Checking the value of S_2 for the 10 first eigenstates produced by QuantNBody
Eigenstate #0 7.211422253675881e-35
Eigenstate #1 2.4220494982141283e-30
Eigenstate #2 3.585503779835195e-30
Eigenstate #3 4.118252264590018e-30
Eigenstate #4 5.66521922848957e-30
Eigenstate #5 -1.3764367007004992e-17
Eigenstate #6 -3.441433200150141e-17
Eigenstate #7 3.386030493767104e-30
Eigenstate #8 1.243288016307383e-17
Eigenstate #9 5.035284097980329e-30
